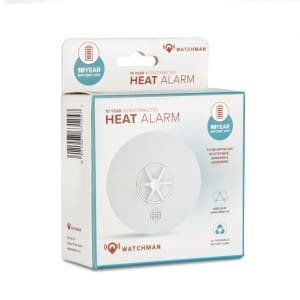

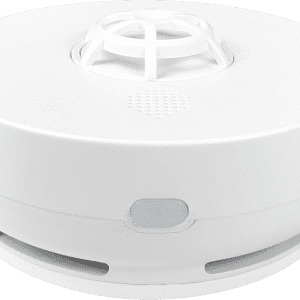

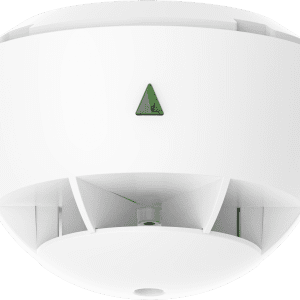

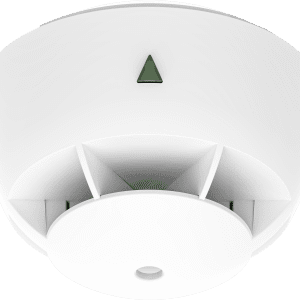

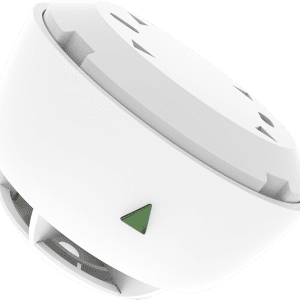

The AJ-770T4, 10 Year battery, interconnected heat alarm is designed to be installed in areas not suitable for smoke alarms; kitchens, garages and laundries. The alarm will activate once it detects 54ºC within the coverage area.
The 10 Year Interconnected Heat Alarm will connect with your Watchman AJ-770SI4 or AJ-760SI Smoke Alarms and Watchman AJ-R1063 Wall Controller or AJ-R1062 Remote Controller – which allows you to test and hush your alarms remotely.
The AJ-770T4 is powered by a DC3V built-in lithium battery (non-replaceable) offering 10 years battery life. The alarming sound level is at 85db at 3 metres, contains a test and hush button, conforms to BS5446-2:2003 and complies with the NZ Building Code – NZS 4514:2021 (kitchens and sculleries).
Product Code – Single Pack: AJ-770T4-S
Features
- 10 YEAR LONG-LIFE Huiderui CR123A (sealed)
- SOUND LEVEL85db at 3 meters
- NEW RF TECHNOLOGY automated RF pairing, allows connection to up to 22 alarms
- 9 MINUTE hush
- 30 DAY low battery alert
- CEILING OR WALL INSTALLATION see user guides for installation locations
- CONFORMS TO BS5446-2:2003, NZ Building Code and NZS 4514:2021 compliant
- CONNECTS with AJ-770SI4 Smoke Alarm, AJ-R1063 Wall Controller, AJ-760SI and the AJ-K102 Relay Switch
Technical Specifications
- SENSOR TYPE:Fixed temperature – 54ºC
- BATTERY: Huiderui CR123A (sealed)
- INTERCONNECTED RADIO FREQUENCY:433 MHz
- RANGE:Maximum 100m in plain line of sight
- VISUAL INDICATOR:Activated alarm’s LED will flash
- OPTIMAL TEMPERATURE OF FUNCTION:-10ºC to +50ºC
- DIMENSIONS:diameter 78mm x depth 57mm
